CEMBRE 圓形電纜引入系統
概述

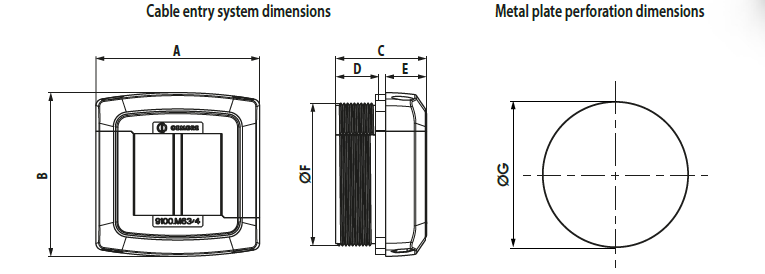

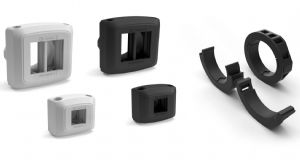

公制內螺紋適配穿芯 M25 - M63
| 尺寸 | 圖例 |
型號
|
顏色
|
小墊圈
數量
|
大墊圈
數量
|
A
[mm]
|
B
[mm]
|
C
[mm]
|
D
[mm]
|
E
[mm]
|
?F
[mm]
|
固定孔?G
[mm]
|
|
 |
9100.M25 | Grey RAL 7035 | 1 | 0 | 50 | 45.5 | 40 | 19 | 18 | M25x1.5 | 25.4 |
| 9100.M25N | Black RAL 9005 | 1 | 0 | |||||||||
|
 |
9100.M32 | Grey RAL 7035 | 1 | 0 | 50 | 45.5 | 40 | 19 | 18 | M32x1.5 | 32.5 |
| 9100.M32N | Black RAL 9005 | 1 | 0 | |||||||||
|
 |
9100.M50/1 | Grey RAL 7035 | 0 | 1 | 72 | 72 | 40 | 19 | 18 | M50x1.5 | 50.5 |
| 9100.M50/1N | Black RAL 9005 | 0 | 1 | |||||||||
 |
9100.M50/4 | Grey RAL 7035 | 4 | 0 | ||||||||
| 9100.M50/4N | Black RAL 9005 | 4 | 0 | |||||||||
 |
 |
9100.M63/1 | Grey RAL 7035 | 0 | 1 | 72 | 72 | 40 | 19 | 18 | M63x1.5 | 64 |
| 9100.M63/1N | Black RAL 9005 | 0 | 1 | |||||||||
 |
9100.M63/4 | Grey RAL 7035 | 4 | 0 | ||||||||
| 9100.M63/4N | Black RAL 9005 | 4 | 0 |
